RHA

Automation for hinged shutters

Small, discreet and silent, it is the ideal automatism that thanks to its simple leverages, opens and closes the blinds and casement shutters in your home. It can be applied even in case of existing window frames, remaining almost invisible, thanks to the small size of its structure and the white aluminum box (can be painted on request). 12V low-voltage motor.

The Rha system for automating casement shutters consists of:

AUTOMATION SET
It includes carter with control unit and gear motor on the inside.

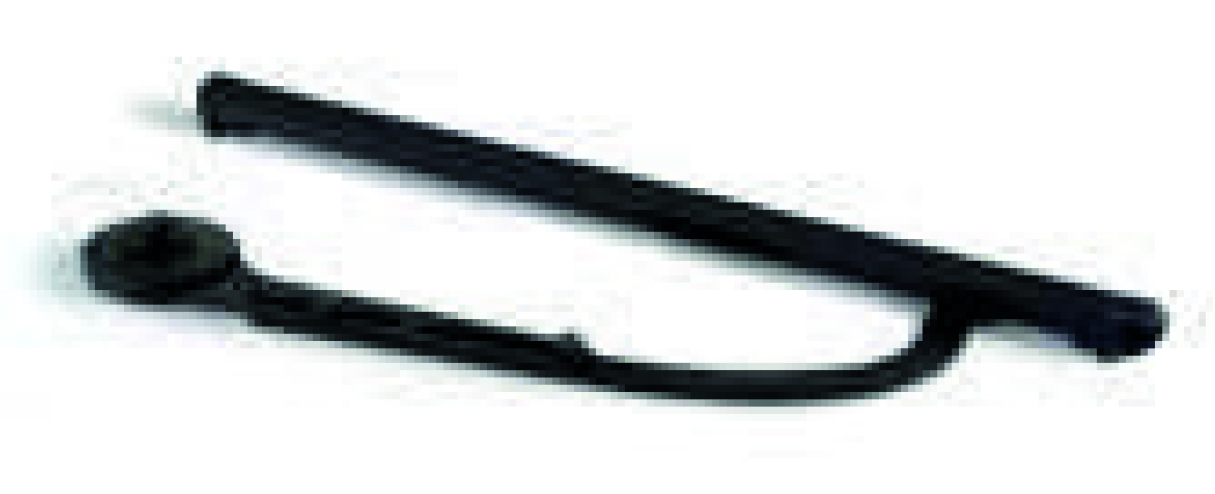

LEVER KIT
To be chosen according to the type of shutter opening, 1 lever for each shutter.

Standard application with mounting under lintel

Application with moto on the sill for windows rounded at the top

Control unit

Description	RHA2
Control panel	for 1 or 2 motors 12 Vdc with built-in radio
Radio receiver	integrated, 433 MHz
Power supply	230 Vac / 50-60Hz
Energy saving	reduced consumption in stand-by and during use
Number of motors	1 or 2
Motor power supply	12 Vdc / 1,4 A
Electroblock	12 Vdc
ODS - Obstacle detection (causes stop or reversal of the maneuver if obstacle is detected)	Yes
Opening command	Yes
Closing command	Yes
Dead man command	Yes
Centralized opening command	Yes
Centralized closing command	Yes

Gear motor

Description	RHA 1
Electromechanical actuator	for hinged shutters
Maximum capacity	30 kg (1 sash) 60 kg (2 sashes)
Service class	2 - light
Intermittency	S2 = 7 min / S3 = 15%
Power supply	12 Vdc
Power consumption	1,4 A
Torque / Thrust	34 Nm
Opening / closing speed	12 s / 180°
Operating temperature	-20°C / +55°C
Degree of protection (with aluminum profile)	IP 44
Product dimensions (mm)	70 x 52 x L
Control panel	RHA 2

RHA section size

Aluminum shutter box reducible to size:
– 1 sash min = 600 mm (without electroblock)
– 2 sashes min = 800 mm (without electroblock)

1 SHUTTER
The set contains, in a single package, automation and control accessories needed to make a one-hinged shutter. Composition:
– no.1 RHA1 actuators complete with control panel with built-in radio receiver
– support profile and closing casing both in WHITE painted aluminum (RAL9010)

AVAILABLE SIZES:

Set for 1 shutter with a width of 865 mm (can be reduced to size)
Set for 1 shutter with a width of 1200 mm (can be reduced to size)

2 SHUTTERS
Automation set for 2 hinged shutters (30Kg x 2 shutters = 60 kg max)
The set contains, in a single package, automation and control accessories needed to make a two-hinged shutter. Composition:
– no.2 RHA1 actuators complete with control panel with built-in radio receiver
– support profile and closing casing both in WHITE painted aluminum
(RAL9010)

AVAILABLE SIZES:

Set for 2 shutters with a width of 1200 mm (can be reduced to size)
Set for 2 shutters with a width of 1525 mm (can be reduced to size)
Set for 2 shutters with a width of 2000 mm (can be reduced to size)

Other RHASET colours
RHASET automations, in addition to the white colour, can also be requested in anodized aluminum (same price as white) or with RAL supplied by the customer.
